In home irrigation, the correct selection of diameters and threads for fittings is critical to ensure efficient operation, prevent leaks, and facilitate installation and maintenance of irrigation systems.

Understanding the typical applications of different diameters, thread categories, and how they correspond to each other makes it easier to install and maintain systems, reducing possible problems and ensuring optimal water distribution.

Choosing components that conform to standards and using appropriate adapters when necessary is critical to a successful home irrigation system.

With this article, we want to offer tips for creating a fully functioning, reliable, and durable irrigation system that meets the various needs for any garden or green space.

So let’s explore what are the most common diameters used in home irrigation, the prevalent types of threads, and how these match each other to meet different needs.

The diameters of hoses and fittings for home irrigation vary according to function and required flow rate. Here are the most common diameters and their applications.

1/4 inch (6 mm)

– Applications: drip irrigation systems, micro-irrigation for individual plants, greenhouses, balconies or small gardens.
– Features: allow precise control of water flow, reducing waste and distributing water directly to plant roots.

3/8 inch (10 mm)
– Applications: light spray irrigation systems, intermediate fittings between microirrigation and more robust spray irrigation.
– Features: offer greater flow rate than 1/4” and are suitable for small/medium-sized gardens.

1/2 inch (15 mm)
– Applications: standard spray irrigation systems, main water distribution in residential irrigation systems.
– Features: balance between flow rate and flexibility, suitable for most domestic gardens.

3/4 inch (20 mm)
– Applications: high-flow irrigation systems, irrigation of large lawns or gardens with many plants.
– Features: high water flow rate, ideal for covering large areas with less pressure.

1 inch (25 mm)
– Applications: main water distribution, main fittings between the water source and various branches of the irrigation system.
– Features: mainly used in larger irrigation systems, although less common in domestic homes.

The choice of thread type is important because it affects the compatibility and efficiency of connections in the home irrigation system.

The thread can be of different types, e.g. conical, cylindrical, metric, etc., and for this reason it is essential to know which type is needed on a case-by-case basis.

The thread system follows specific standards and indicates not only the type of thread such as BSP (stands for “British Standard Pipe,” the most common standard used for threaded fittings in irrigation systems), NPT or ISO metric, but also the size of the nominal diameter.

This can drastically reduce the risk of error during assembly and installation because components can be quickly matched to the correct thread type.

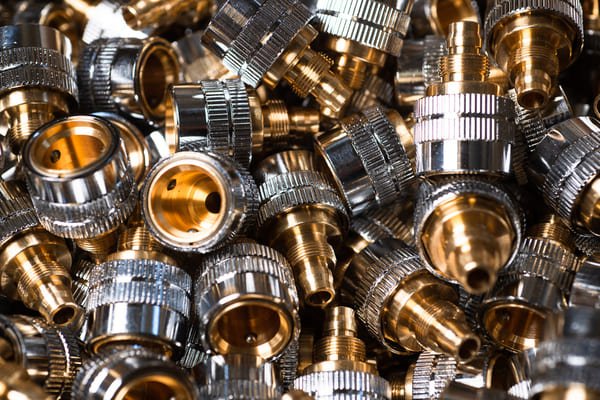

Brass threads are preferred over plastic threads for several reasons, mainly related to durability, mechanical strength, and resistance to external agents Here are the main reasons.

1. Durability and mechanical strength.
Brass: brass threads are much more resistant to wear, deformation, and mechanical stress than plastic threads. Brass is a metal material that offers greater strength, making fittings and components more resistant to high pressures and repeated use.
Plastic: Plastic threads are weaker and can deform or break under stress, especially in applications where frequent tightening or high pressure is required.

2. Temperature resistance
Brass: Brass can withstand much higher temperatures than plastic without suffering damage or losing structural integrity. This makes it suitable for applications where the system is exposed to temperature changes or high temperatures.
Plastic: plastic can deform, soften, or break at high temperatures, limiting its use in environments with large variations in heat.

3. Corrosion resistance
Brass: although some metals are prone to corrosion and rust, brass is particularly resistant, especially when exposed to water and moisture. This makes it ideal for plumbing and irrigation systems.
Plastic: can deteriorate over time under UV exposure or specific chemical conditions

4. Long-term stability and reliability
Brass: brass fittings and threads retain their form and function for many years, even under harsh conditions. They are particularly suitable for permanent and complex applications, such as plumbing, heating systems, and external connections.
Although plastic is lightweight and easy to install, it does not offer the same long-term stability as brass. Threads can wear over time, causing leaks or needing more frequent replacement.

5. Chemical resistance
Brass: brass has good chemical resistance in water environments, even if slightly aggressive (e.g., if acidic or alkaline substances are present).
Plastic: although some plastics have good chemical resistance, they may degrade or weaken with exposure to certain specific solvents or chemicals.

6. High-pressure applications
Brass: due to its strength, brass is ideal for applications that require pressure holding, such as in hydraulic systems and high-pressure applications.
Plastic: not as suitable for high pressures, as it can deform or break under stress.

7. Reliability in tightening
Brass: brass threads can be tightened more securely than plastic, without risk of breakage or deformation, ensuring more reliable connections.
Plastic: it is easier to damage plastic threads by overtightening, which can lead to leaks or the need for repairs.

8. Aesthetic appearance
Brass: brass also has a more professional appearance and is often preferred in visible applications because it maintains an elegant finish over time.
Plastic: plastic can fade, stain or deteriorate more quickly, especially when exposed to the elements.

In short, we can say that brass threads offer greater strength, durability, pressure resistance, and long-term stability than plastic threads, making them preferable especially for more demanding or long-lasting applications, such as in outdoor plumbing or irrigation systems. Plastic threads, on the other hand, may be appropriate for light and less demanding applications, but remain more prone to maintenance and replacement over time.

Below we include some components commonly used in home irrigation with indications of the types of diameters and threads that can be used:

Tee and elbow fittings

– Diameters: 1/4″, 3/8″, 1/2″.
– Threads: BSPP o NPT.
– Applications: direct water flow, create water branches.

Valves and solenoid valves

– Diameters: usually 1/2″ or 3/4″.
– Threads: BSPT for extra tightness, or BSPP with gaskets.
– Applications: control water flow, automate irrigation system.

Spruzzatori e ugelli: Sprayers and nozzles

– Diameters: 1/4″ or 3/8″.
-Threads: BSPP or adapters for various standards.
– Applications: water distribution to specific areas.

Aerators and safety fittings

– Diameters: variable, generally 1/2”.
– Threads: BSPP or NPT.
– Applications: protect the system from debris and ensure clean flow.

Pumps and adapters

– Diameters: 1/2”, 3/4”.
– Threads: depends on the type of pump and connections required, often BSPT or NPT.
– Applications: provide the required pressure to the irrigation system.
